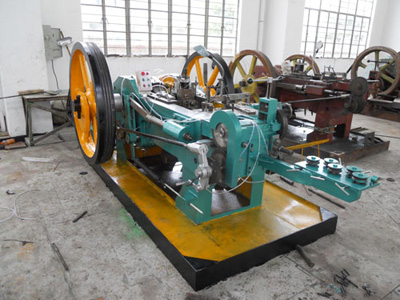

Z12一模兩沖冷鐓機
AddTime:2016/7/7 14:15:50
本機床采用冷鐓方式將冷拔光盤元料或者棒料自動鐓制成圓頭、半圓頭、球頭、四方頭等桿狀螺栓。在加裝后頂拔料裝置后還可生產各種半空、全空的產品。
Z12系列(雙擊整模)自動冷鐓機主要技術規格
Z12 Series of Automatic Cold Headers Key Specifications
| 制件直徑 | 制件長度 | 生產率 | 滑塊行程 | 電機功率 | 重量 | 外型尺寸 | |
| 型號規格 | (mm) | (mm) | (只/分) | (mm) | (kw) | (kg) | (長×寬×高) |
| Type standard | Diameter of Bar Stock | Maximum Length of finished product | Rated Dutput (pcs/min) | Stroke of Slider | Motor Power | Weight | Overall Dimension (mm)(Length × Width × Height) |
| Z12-4 | 2-4 | 5-50 | 85 | 90 | 3 | 1500 | 1225×880×1050 |
| Z12-6 | 4-6 | 8-80 | 80 | 120 | 5.5 | 3500 | 2350×1400×1350 |
| Z12-6A | 4-6 | 15-130 | 55 | 180 | 5.5 | 4000 | 2700×1500×1450 |
| Z12-8 | 6-8 | 15-130 | 65 | 180 | 7.5 | 5500 | 3300×1600×1450 |
| Z12-10 | 8-10 | 20-150 | 60 | 200 | 11 | 6500 | 3520×1900×1700 |
| Z12-10L | 8-10 | 30-200 | 55 | 260 | 11 | 8500 | 4000×2000×1800 |
| Z12-10LL | 8-10 | 45-250 | 45 | 330 | 11 | 10000 | 4500×2100×1880 |
| Z12-12 | 10-12 | 15-150 | 55 | 200 | 18.5 | 11500 | 5500×2350×1750 |
| Z12-12L | 10-12 | 30-200 | 50 | 280 | 18.5 | 12500 | 5900×2350×1750 |
| Z12-12LL | 10-12 | 50-250 | 40 | 330 | 18.5 | 14000 | 6300×2400×1800 |
| Z12-16 | 12-16 | 15-150 | 55 | 200 | 22 | 15000 | 6400×2500×2500 |
| Z12-16A | 12-16 | 25-200 | 50 | 260 | 22 | 18000 | 6800×2650×2500 |
| Z12-16L | 12-16 | 45-250 | 40 | 330 | 22 | 19000 | 7000×2800×2500 |
| Z12-16LL | 12-16 | 55-300 | 32 | 420 | 30 | 23000 | 7150×2950×2500 |
| Z12-20 | 12-20 | 15-200 | 50 | 260 | 37 | 23000 | 7200×3200×2300 |
| Z12-24 | 20-24 | 15-200 | 45 | 260 | 40 | 28000 | 7300×3400×2300 |
